4 & 5 Axis CNC Simulation Software
CNC training to the next level with VEMCO advanced 4 & 5 Axis CNC Simulation Software. Built for institutes and professionals, this multimedia-based simulation Software delivers a fully immersive machining experience with realistic graphics, authentic console panels, and interactive controls.
Key Features

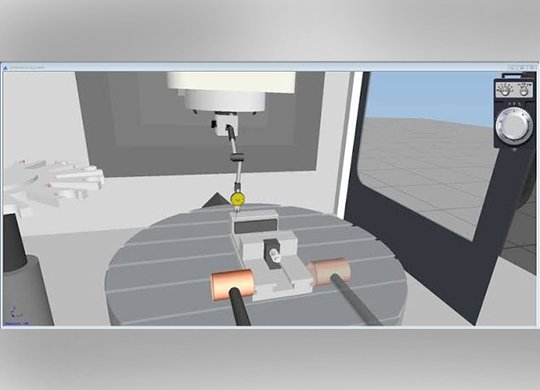

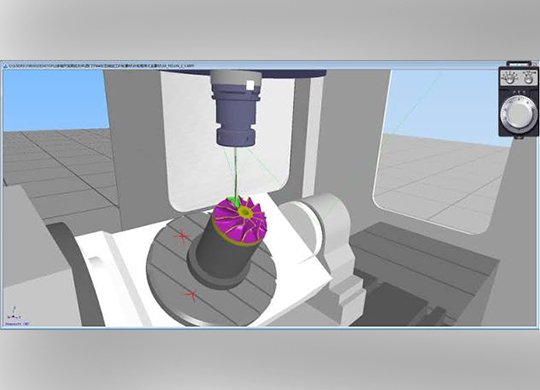

- Full 3D simulation of 4-axis and 5-axis VMC machines
- Realistic visualization of work holding, cutting tools, and ATC systems
- Zoom, rotate, and pan machine views for detailed inspection
Comprehensive Machine Simulation

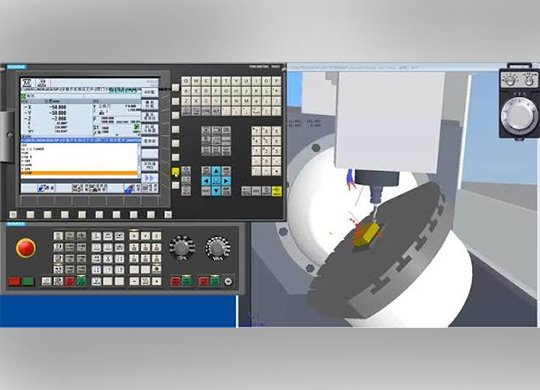

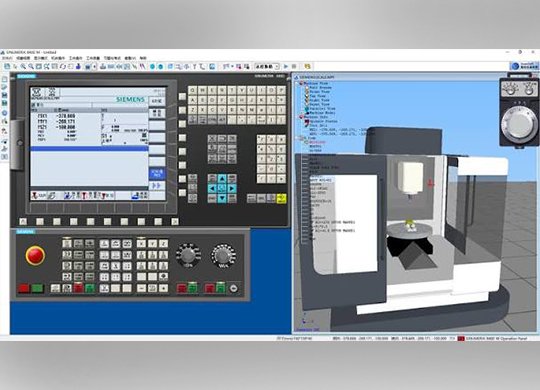

- Replicas of 10+ control systems and 20+ panels including Fanuc, Sinumerik, Mazak, Mitsubishi, Fagor, Haas, Heidenhain, and more
- Exact keyboard layouts and logic for true-to-life operation
- Interactive console operation via mouse or touch screen
Authentic CNC Console Panels
- 5-axis milling setups: AB, AC, BC types with options for both axes in bed, bed & head, or both axes in head
- Select 4-axis or 5-axis machining modes
Flexible Machine Configurations
- Memory, Edit, MDI, Jog, Incremental Jog
- Emergency stop, cycle start/stop, reset, edit lock
- Spindle start/stop, tool change, coolant control, feed & speed overrides
Industry-Standard Operation Modes
- Simulation of G-codes, M-codes, canned cycles, and subprograms
- Tool and work offset setting methods used in industry
- Flow of chips and coolant with realistic machining sounds
- Alarms for tool collisions, axis over-travel, and safety conditions
Realistic Machining Environment
- Video recording, storage, and replay for offline skill assessment
- On-screen measurement for tool offset setting and inspection
- Tool database with face mills, end mills, drills, taps, boring tools, and more
Advanced Training Tools
- Touch screen monitor support for hands-on training

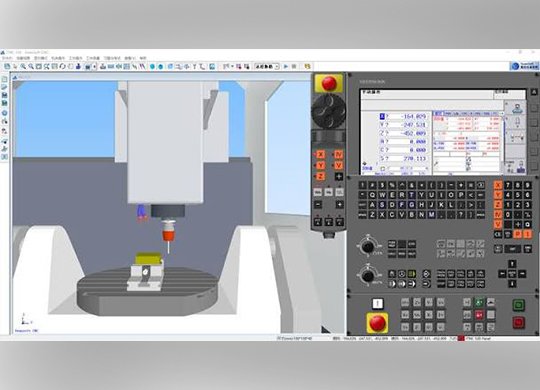

- Dual monitor setup: CNC console on one screen, machine simulation on another
- Complete integration of CNC console and machine simulation in one view
